Description
SPECIFICATIONS
BSD Alarm Function: Adjustable, can be turned off
BSD Speaker: Can Adjust Volume or Mute
Brand Name: GreenYi
Car Fitment: Universal
Function: Waterproof,BSD Alarm,DVR Recorder Monitor
IR Night Vision: Support
Model Number: ADBSD-BSW101
Parking Line: Support
Place of Origin: Guangdong, China
Position: Combination Set
Screen: 10.1 Inch IPS Screen
Screen Resolution: 1280*960
Screen Time Stamp: Support
Special Function: AI Smart Blind Zone Detection alarm
Split Screen: Support
Type: Backup camera,Monitor
Voltage: Dc 12V
Warranty: 1 Year
Wireless Transmission Distance: 150M

Wireless 10” AI Blind Spot Radar BSD Alarm DVR Recorder Monitor 4CH Touch Screen IR Camera For Truck/Trailer/Bus/RV/Pickups/SUV

Features:

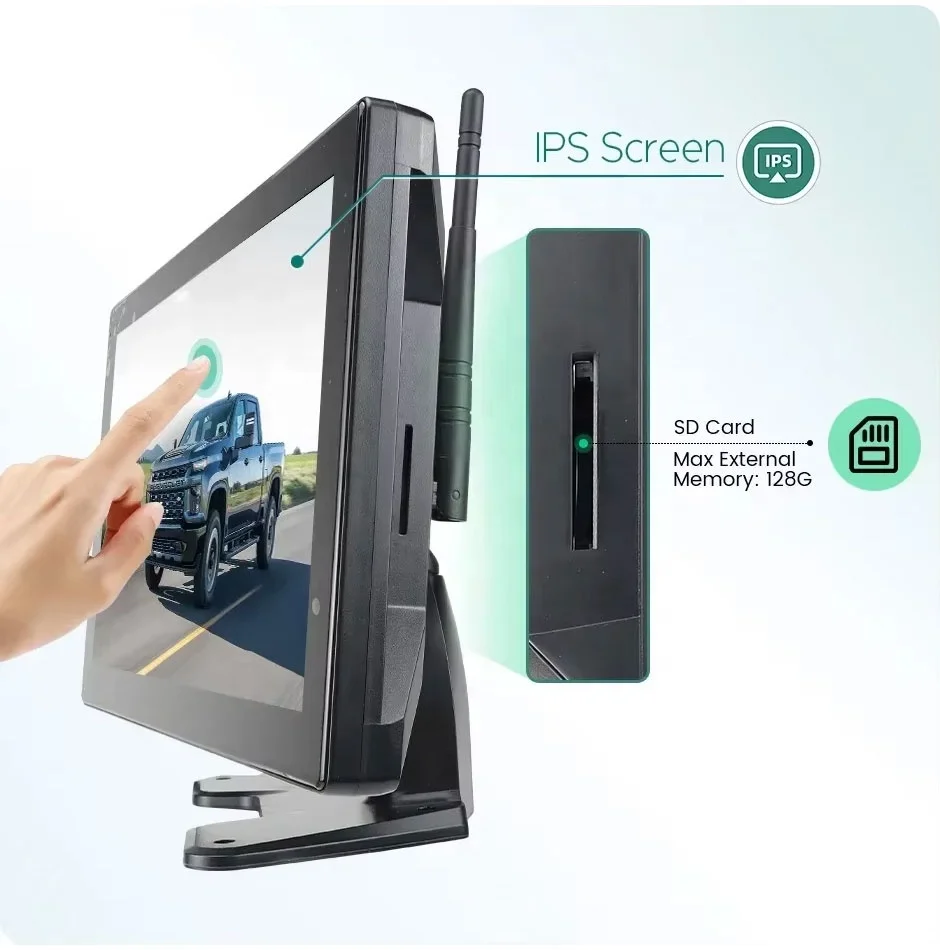

• Touch Screen 10 Inch wireless monitor, IPS screen.
• 4-Channel BSD Alarm all-in-one Parking Recording Monitor. The latest AI intelligent tracking and pedestrians detection technology, vehicle blind spot radar alarm and early warning. Greatly improved driving safety.
• Equipped with the latest exterior alarm speaker with adjustable volume.
• Top Signal transmission distance: 150 meters
• Support for loop recording, supports up to 128G card
• Super easy 1 step installation, very low wireless signal delay
• Can support 2 ~ 4 Camera at the same time
• Support video playback, time delay, power saving mode.
• Support split screen function, image mirror and rotate function
• Monitor sound can be adjusted
• Clearer and advanced bright color separation, signal filtering, 3D noise reduction technology, higher image clarity and better image reproduction.
• Highly integrated AHD front-end chip, high-definition quality products.

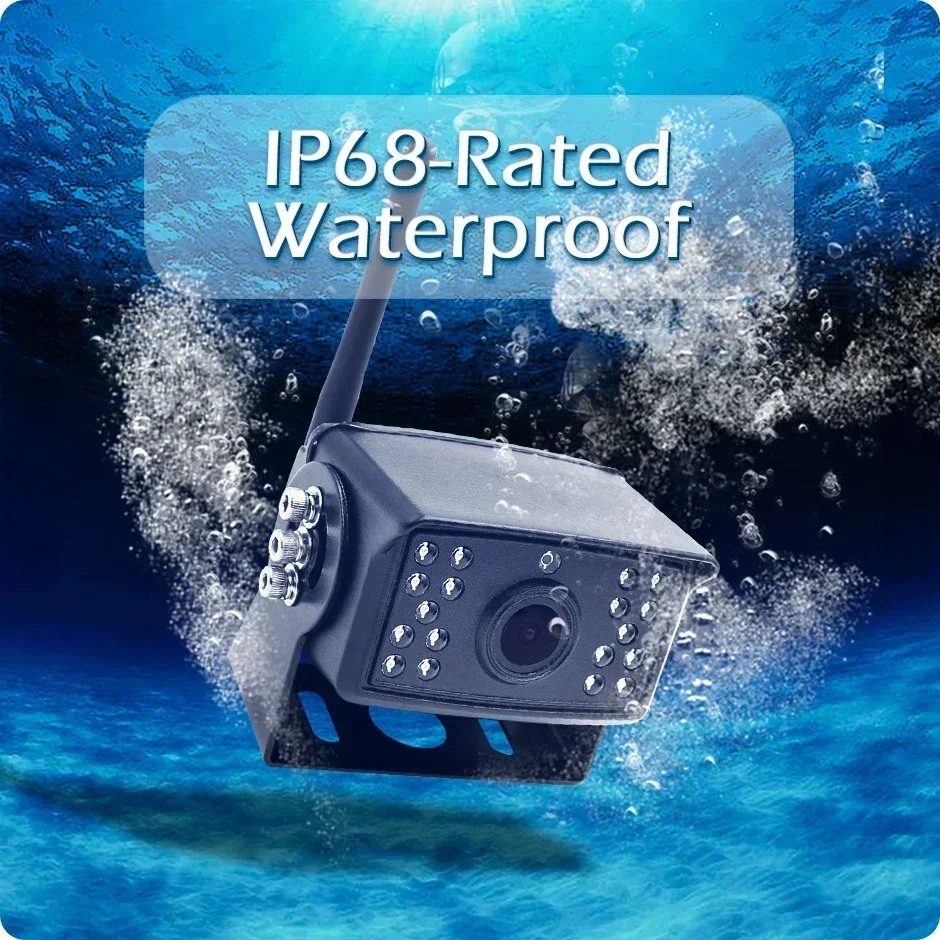

• Rearview Night Vision IR Waterproof Backup Reverse Camera with Built-in Wireless Transmitter–Auto Water-Proof Camera Lens, with 18 individual Infrared (IR) LED. Effective range: 15m. It help your view still clearly at night or in bad weather.

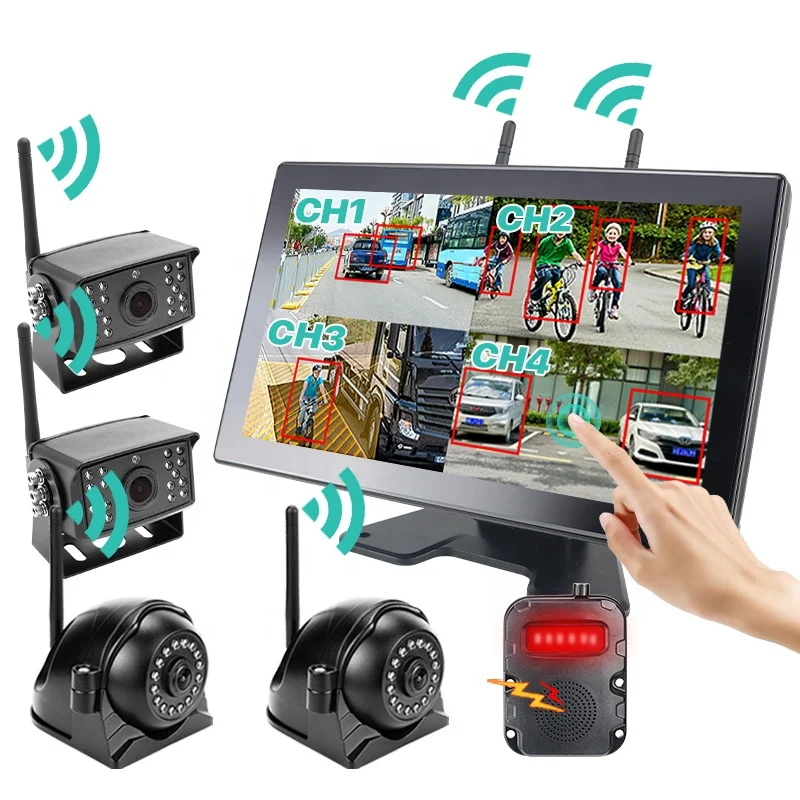

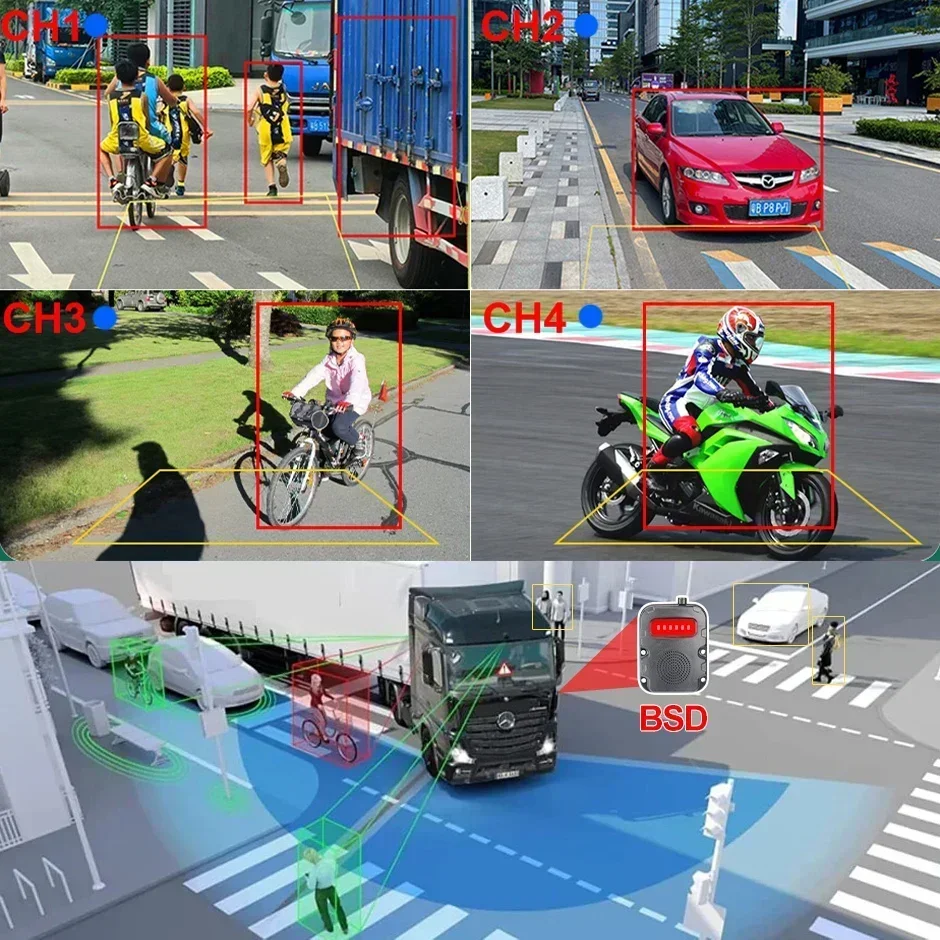

Blind Spot Detection Function

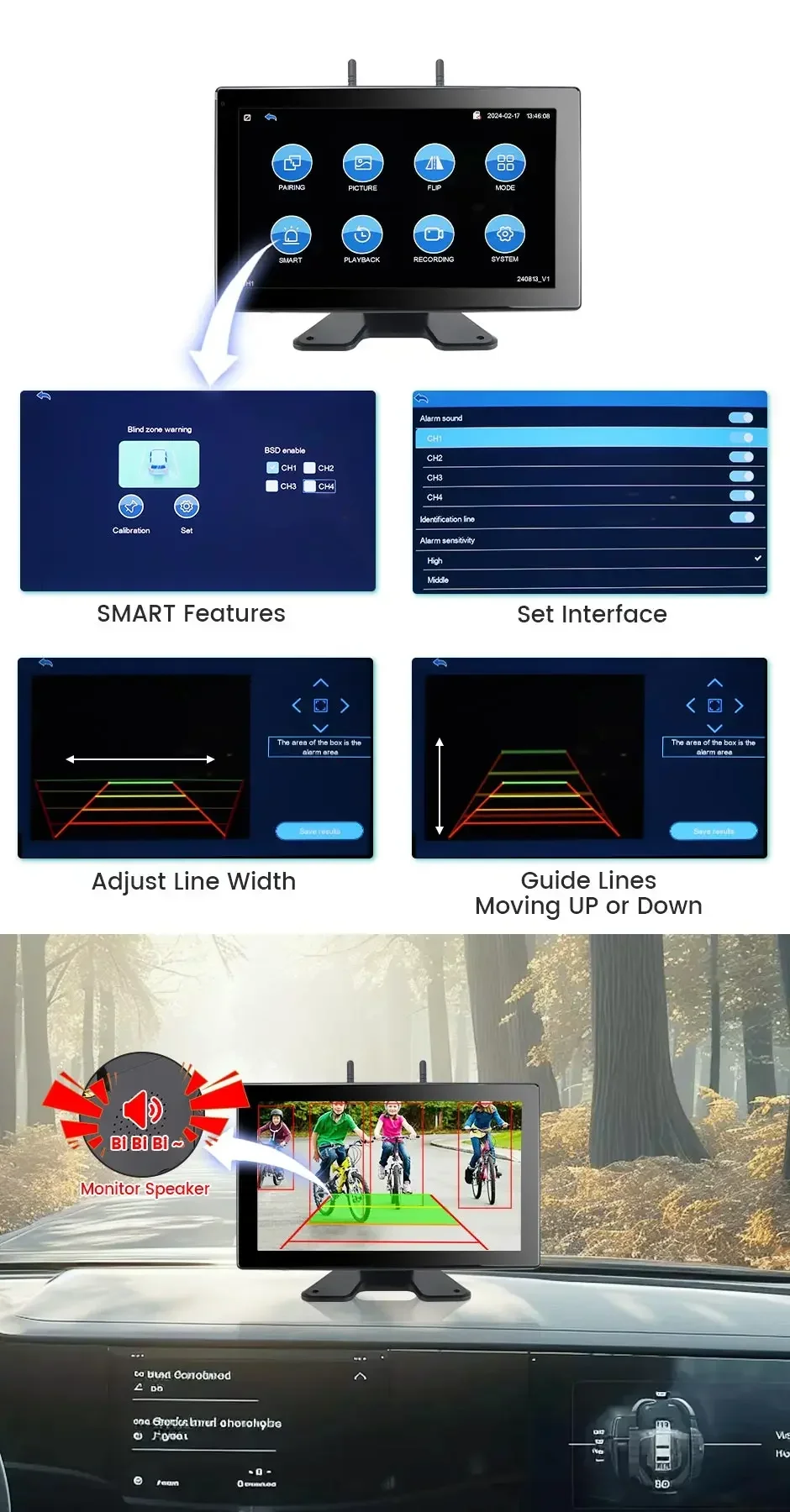

Tips: The monitor defaults to the normal wireless display function, and the BSD detection function is turned off when you receive the product. If you need this function, you can turn on the detection switch of the 4-way camera in the Smart settings.
*BSD detection function: The monitor has a built-in high-computing power Al smart main control chip and a high-definition AHD wide dynamic light-sensitive motherboard, which can monitor and identify pedestrians during driving to ensure driving safety.
* Screen warning: People can be dynamically identified in the output video screen. When the human body enters the screen scale range, the screen scale range will display red, and the speaker will emit a warning sound.

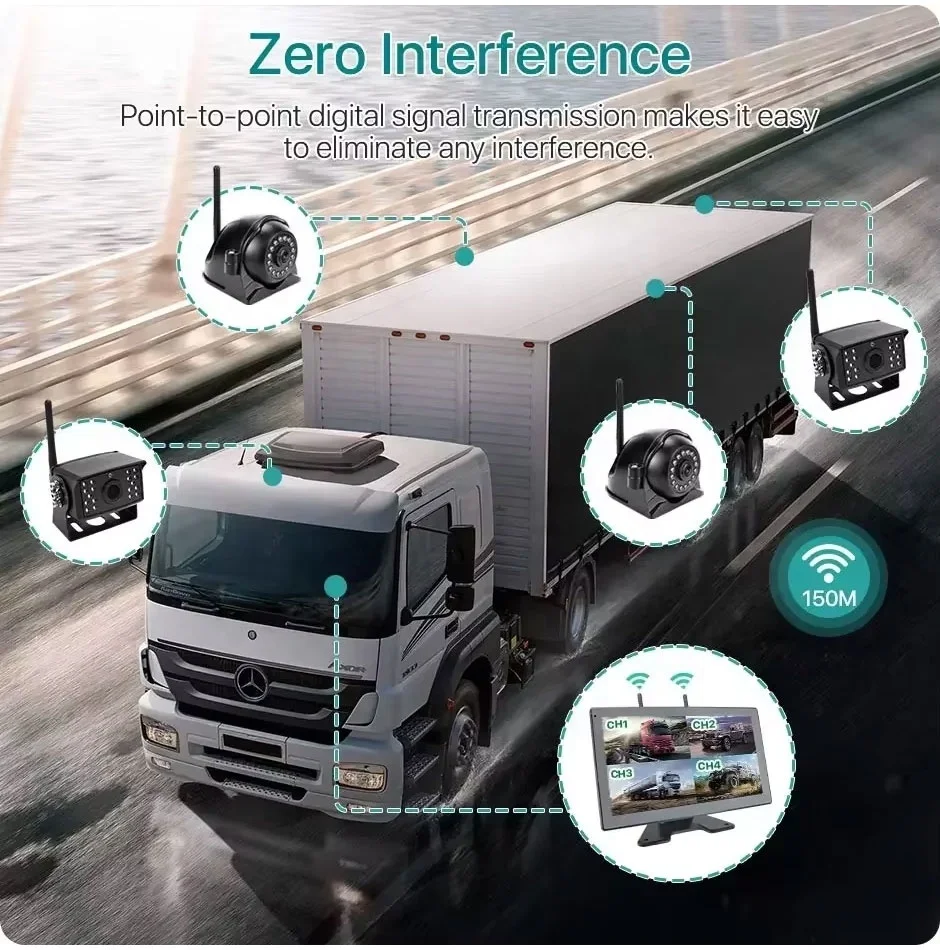

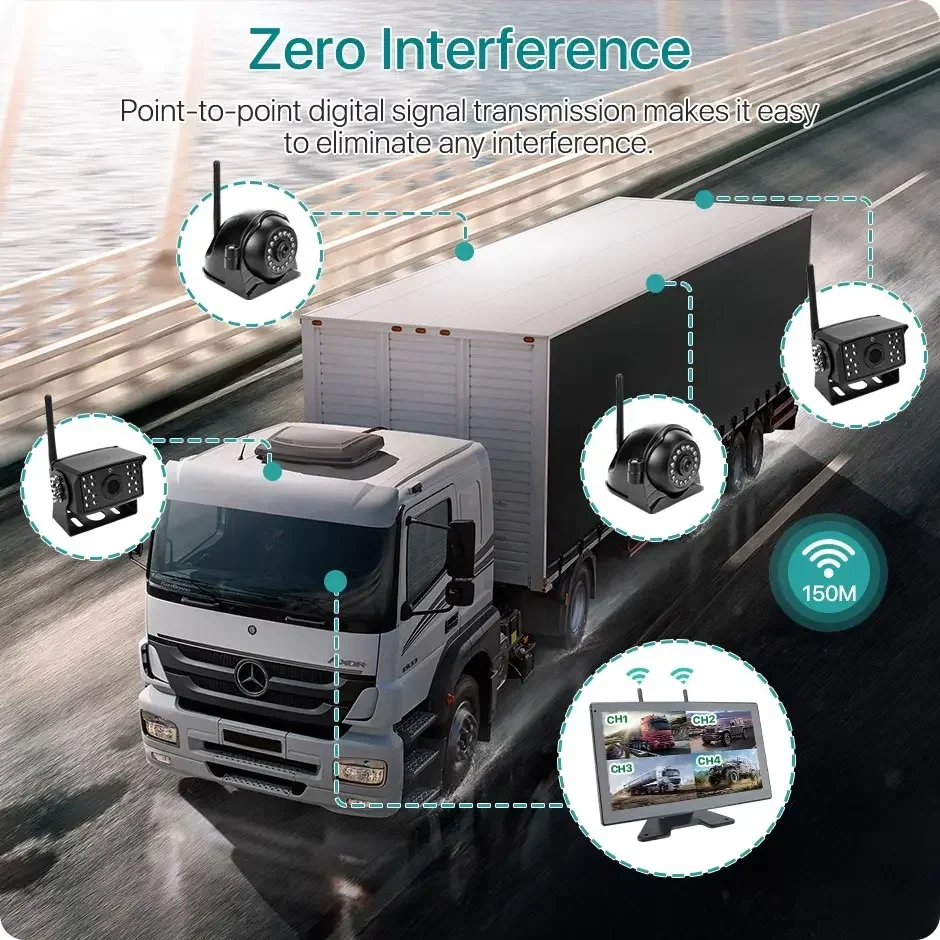

Wireless Transmission with Zero Interference

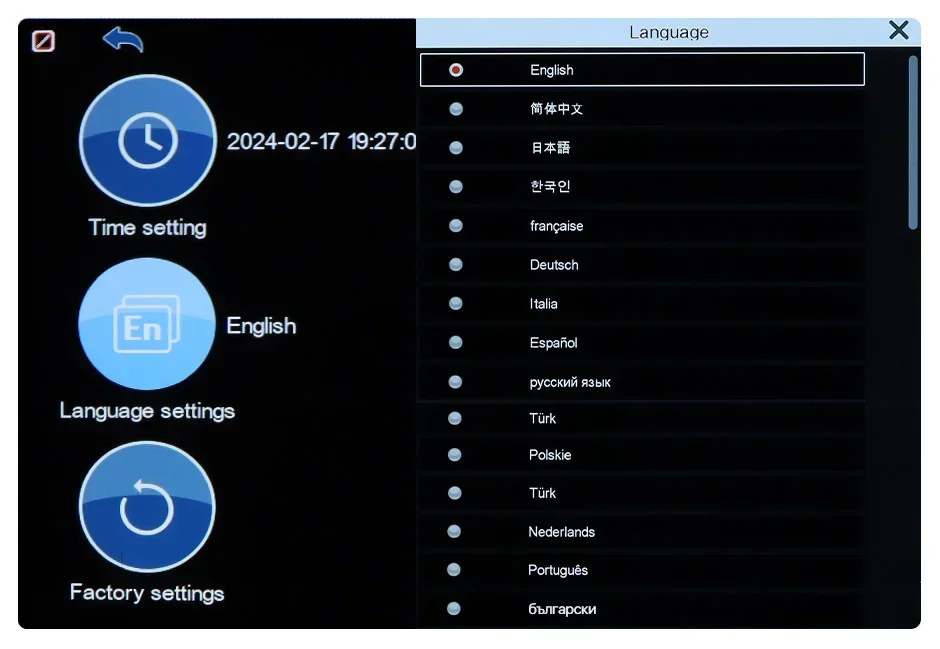

15 Kinds Language Optional
English / Chinese / French / German / Italian / Japanese / Korean / Polish / Portuguese / Russian / Spanish / Turkish / Nederlands / Vietnamese / Bulgarian

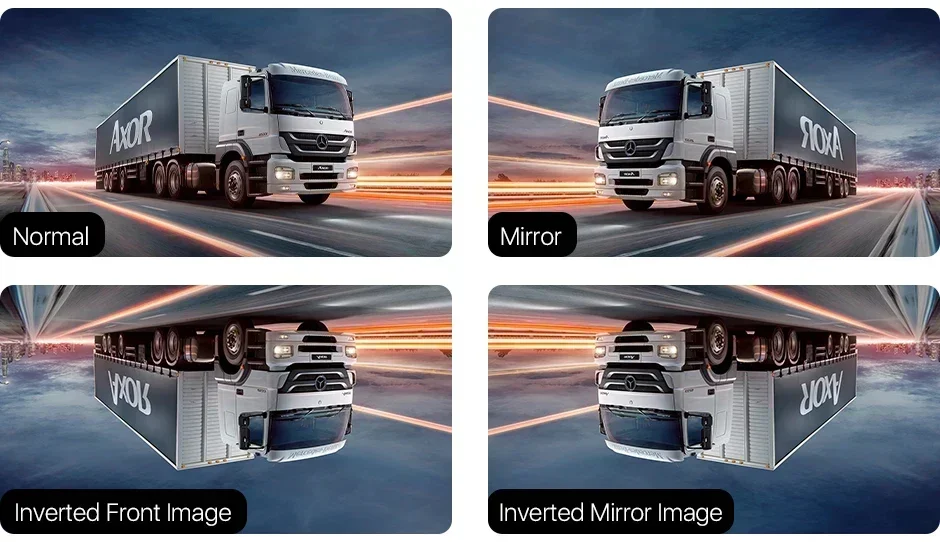

Image Flip

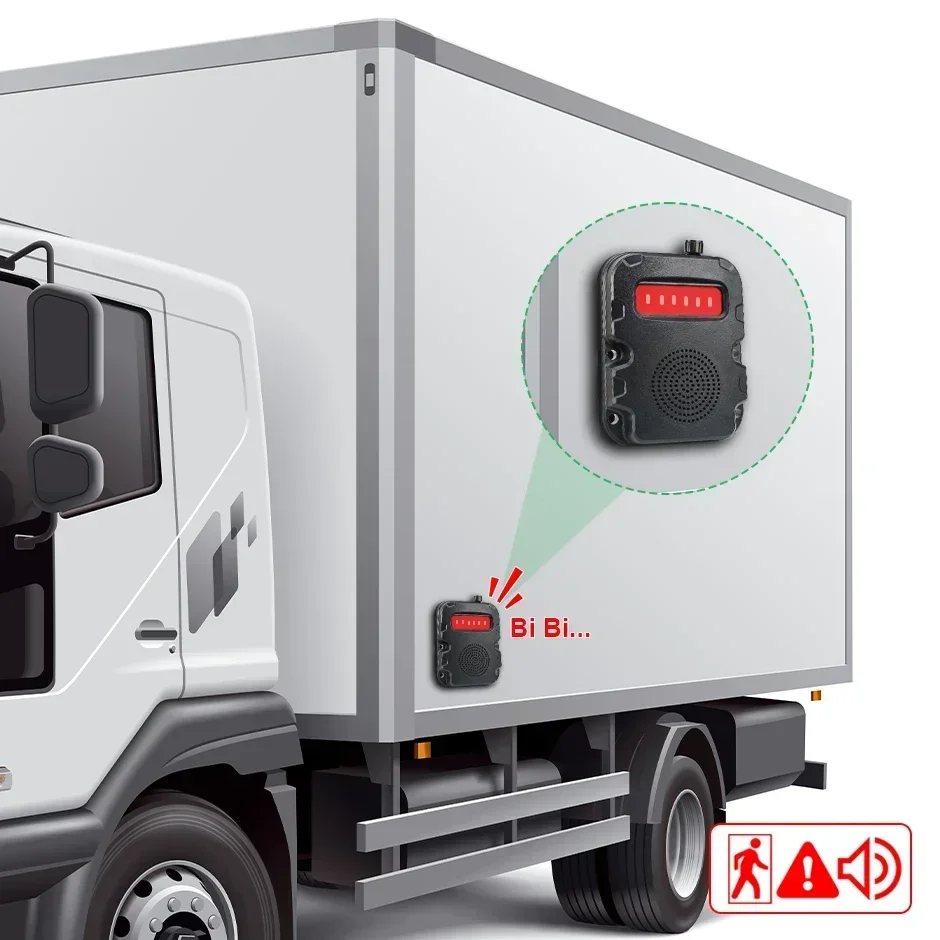

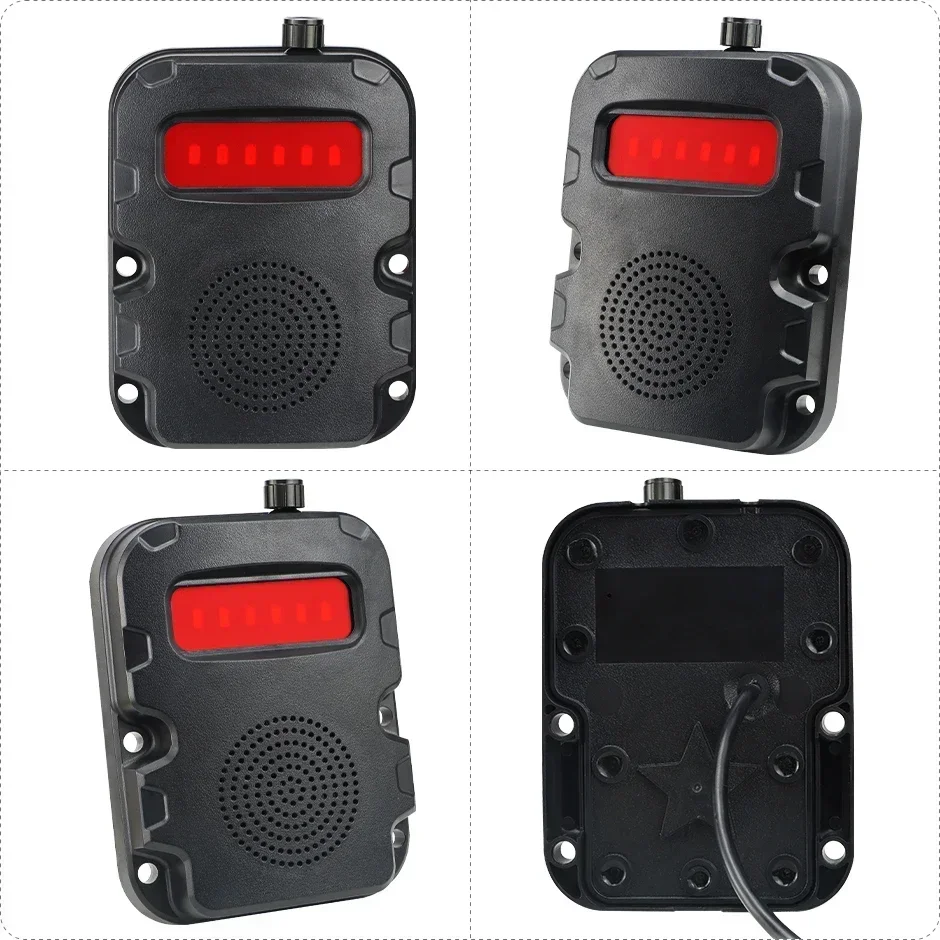

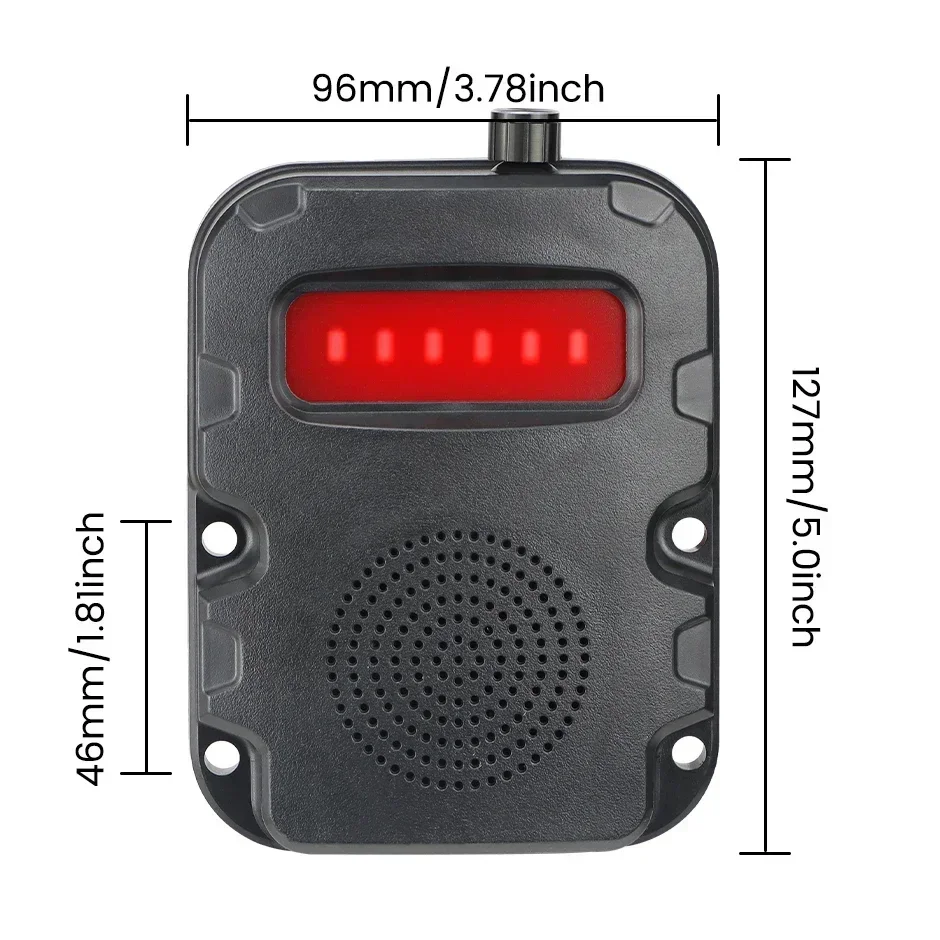

Volume Adjustable BSD Speaker
The audible and visual alarm with high decibel can remind the personnel not to approach, which plays the role of warning and reminder.
*The top of the speaker is equipped with a knob to help adjust the speaker volume.
*This feature addresses every user’s volume needs. The driver can adjust the volume of the external speakers according to his or her needs.
*Lower the volume to prevent it from being too loud.
*You don`t have to worry about making too much noise to avoid disturbing residents and pedestrians.

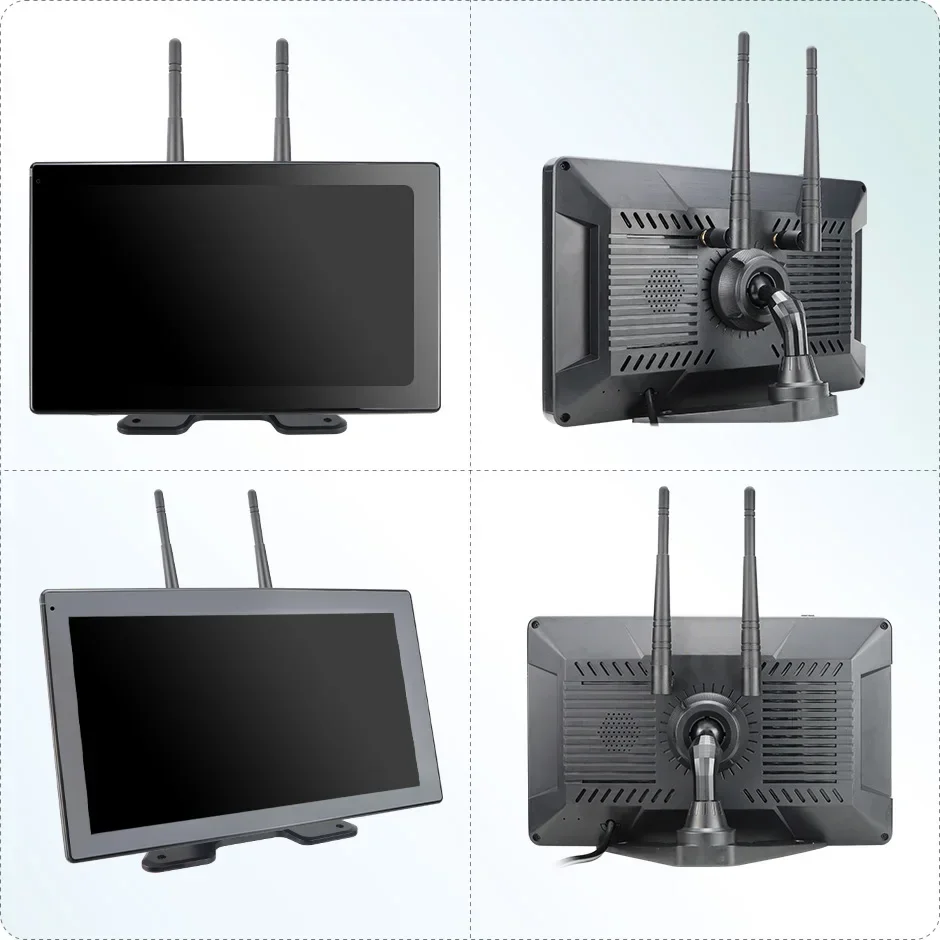

AHD Wireless Car DVR Monitor:

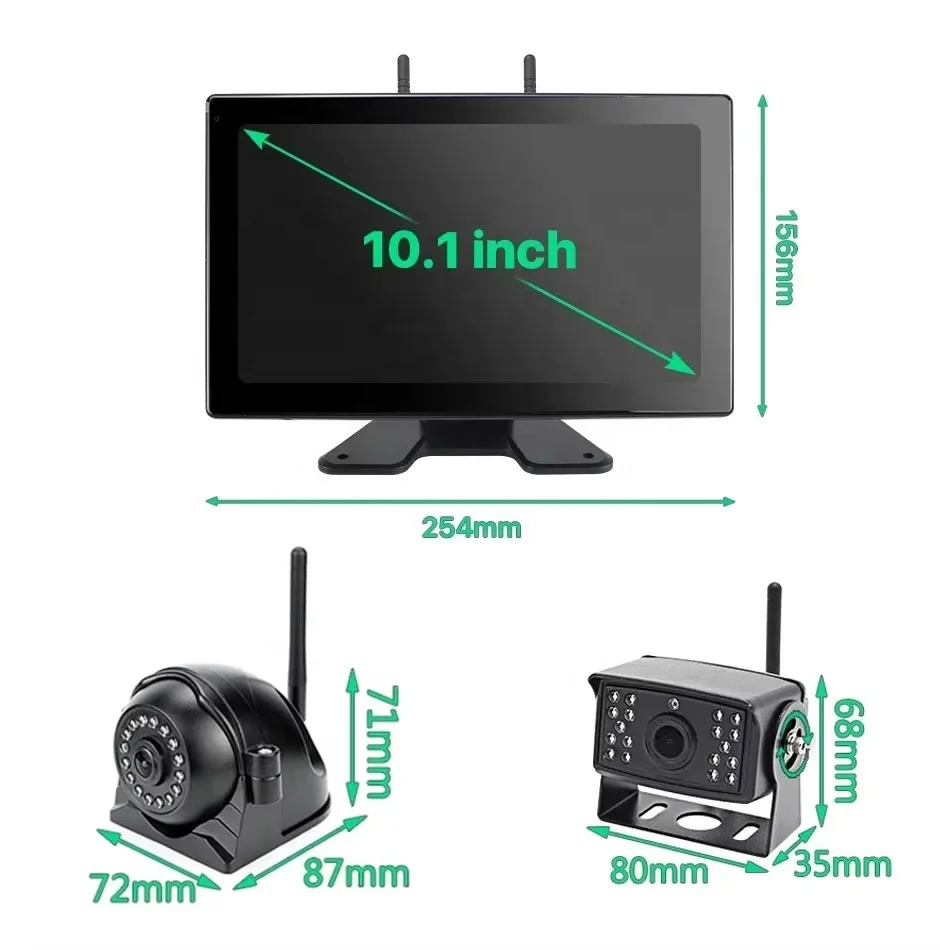

Screen size: 10-inch screen
IPS screen: Support
Format: 16:9
Screen brightness: 500CD / M2
Effective pixels of the screen: 1280*960P
Record video pixels: 1280*720P
Loop recording: Support
Split screen: Support
Real-time playback: Support
Night vision image: automatic gain control, automatic white balance.
Power supply voltage: 12V-30V
Mirror function: Support for 4 types of rotated image display

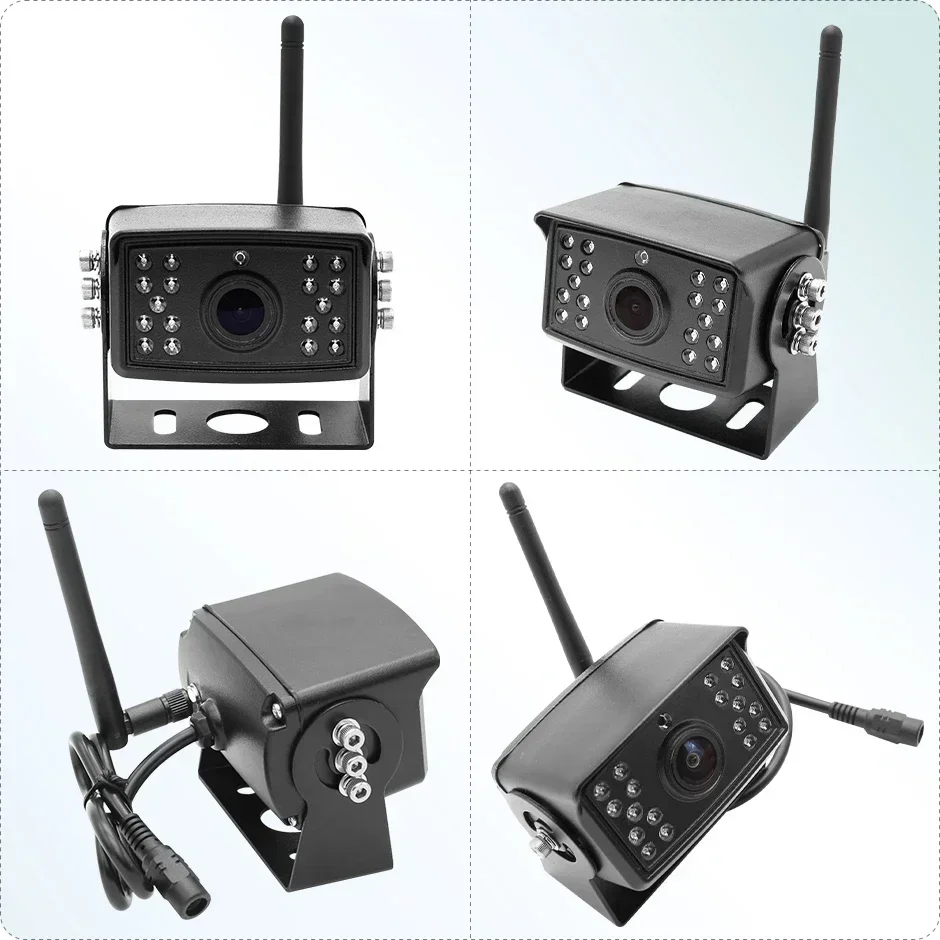

AHD Wireless Car Camera:
Effective pixels: 1080P
Night Vision: With 18 individual Infrared (IR) LED. Effective range: 20m
Material: zinc alloy
Lens: 14/16MM
Low illumination: 0.01Lux
Signal to noise ratio: ≥69dB
Working power supply: DC12V-30V
Working temperature: -20 ° C ~ +50 ° C

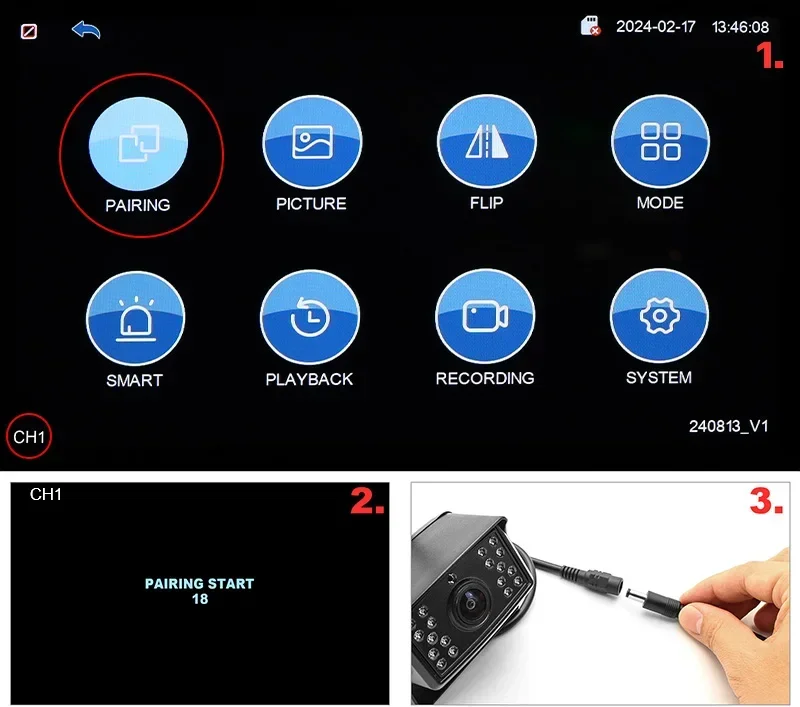

Installation Steps:
1. Click “Pairing” by setting.
2. Then connect the camera to the power supply.
Super easy 1 step installation, up to 150 meters wireless transmission distance, suitable for any vehicle.

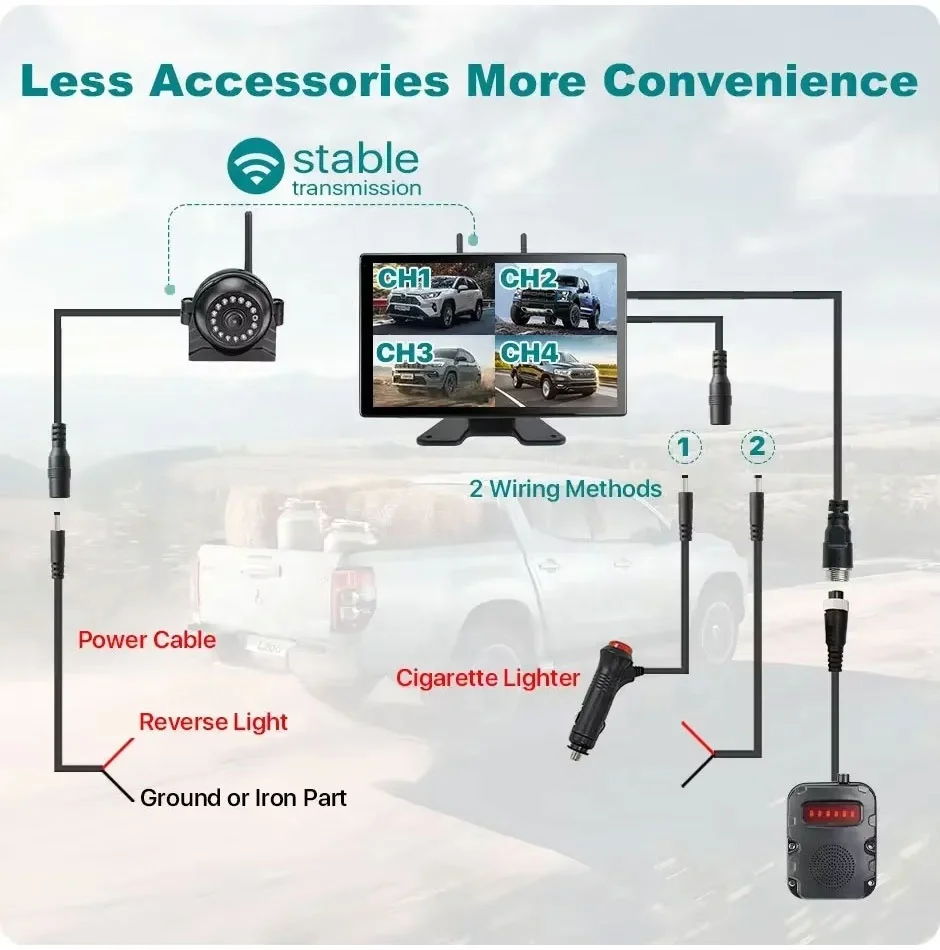

Easy Installation

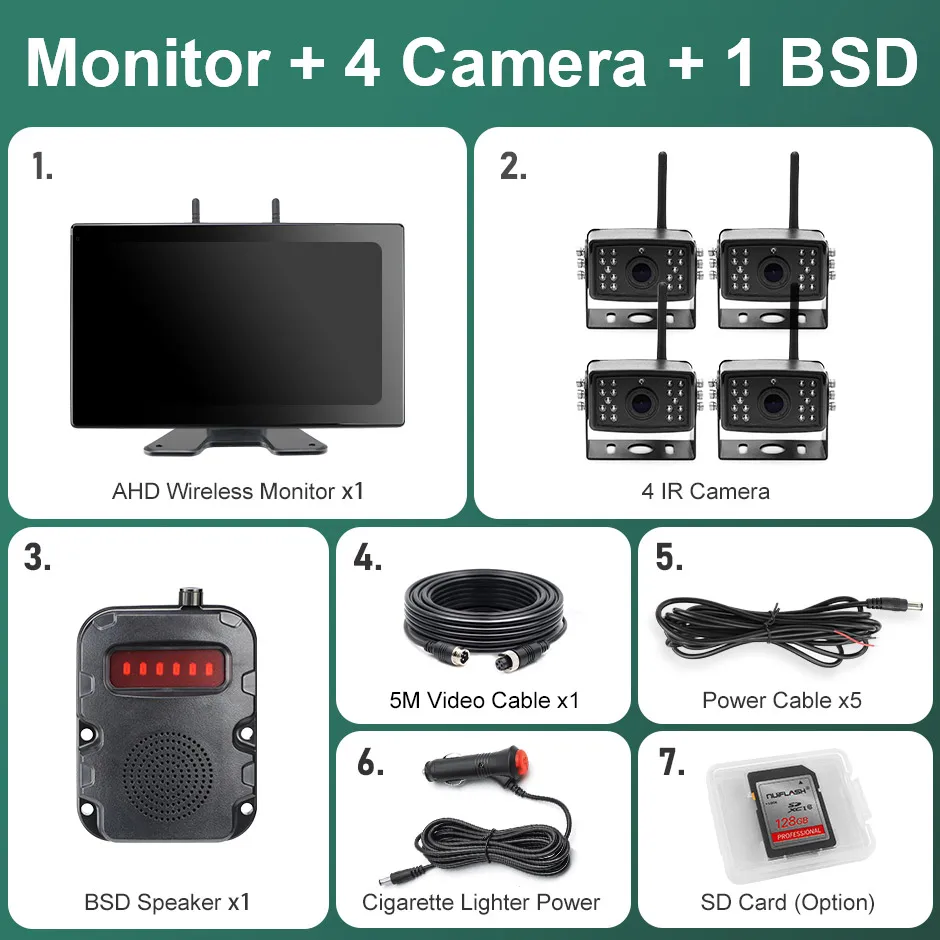

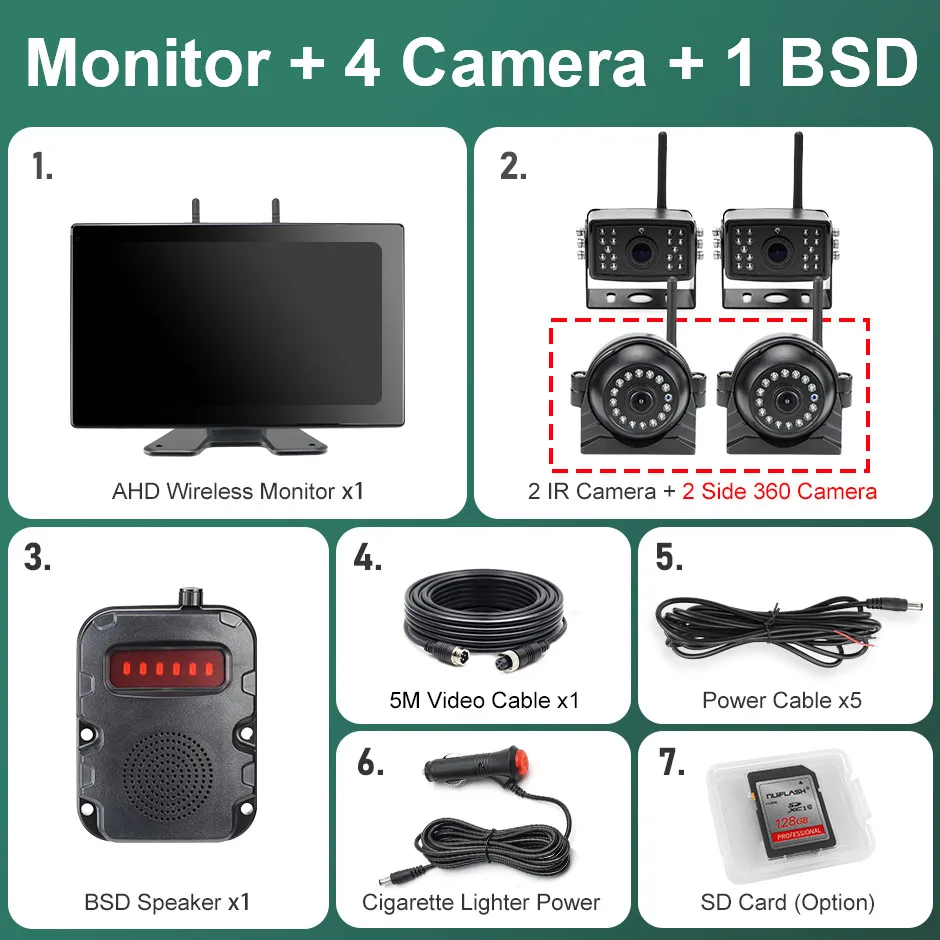

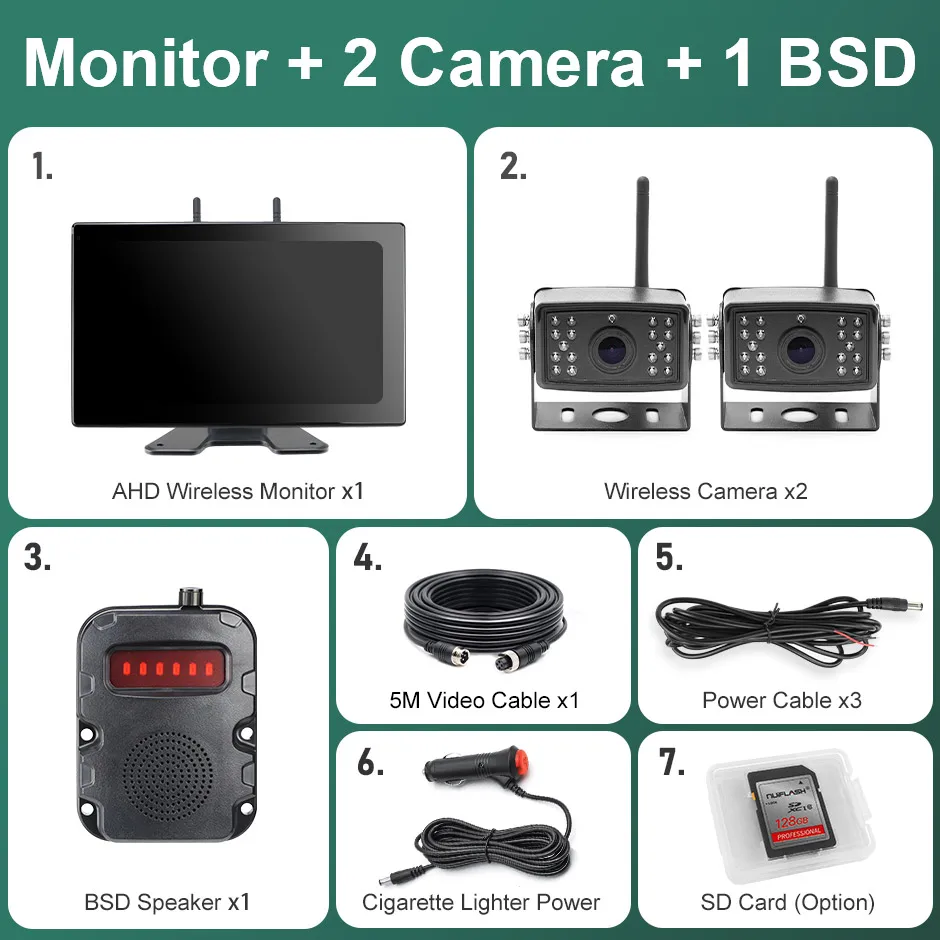

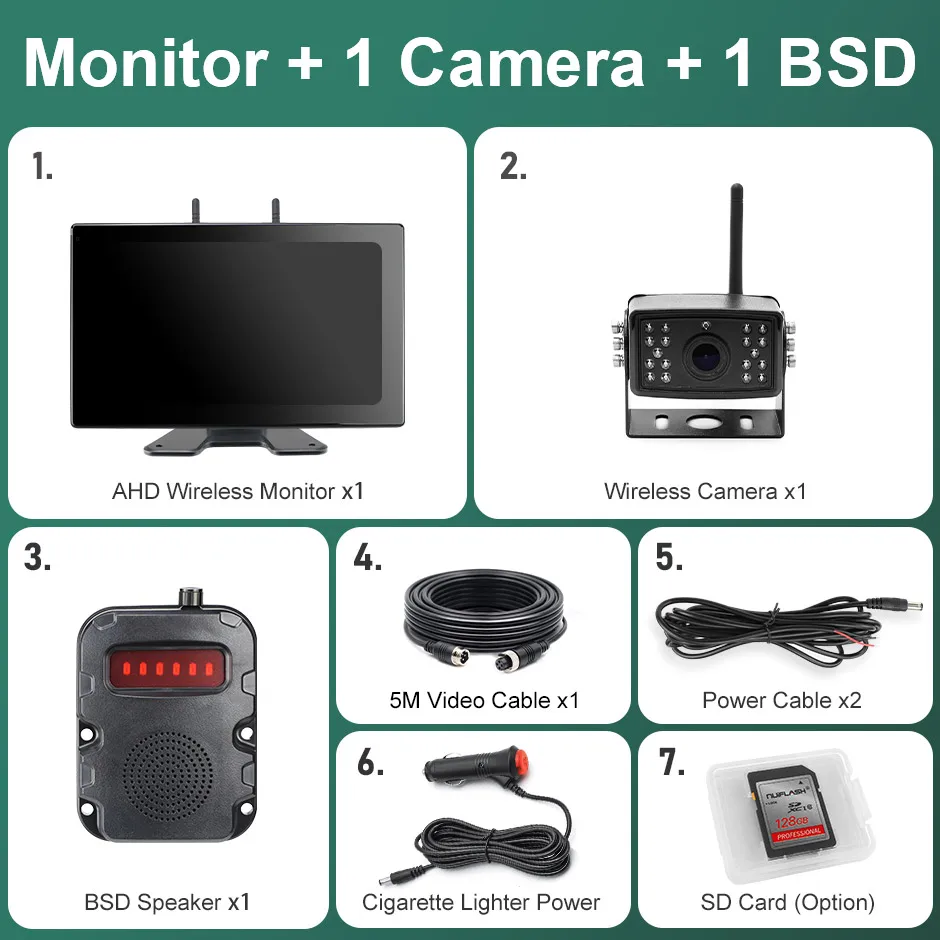

Package Contains
